Coolant Distribution Unit
for AI Data Centers & ASIC Mining
ACTBOXES designs configurable 200–800kW coolant distribution units for AI data centers, HPC clusters and liquid-cooled ASIC mining. Each CDU is engineered around the project heat load, flow rate, pressure drop, site climate and uptime requirements.
Configurable cooling capacity
Dual-pump redundancy
Outlet control target
Typical cycle after technical confirmation
How the ACTBOXES
Coolant Distribution Unit Works
The CDU transfers heat between the facility loop and equipment
loop while keeping both fluids physically isolated.
Heat Rejection
The dry cooler or cooling tower rejects heat outdoors
for optimal system performance.
Primary Loop
the CDU.
Secondary Loop
and hydro ASICs.
1、Heat Rejection
Dry cooler or cooling tower sized against site conditions.
2、Primary Loop
Water or glycol circuit carries heat to and from the CDU.
3、CDU
Plate heat exchanger, redundant pumping and precision control.
4、Secondary Loop
Stable supply temperature and demand-based coolant flow.
5、AI / ASIC
Cold plates, rack manifolds, hydro miners and modular compute.
CDU Engineering for Continuous Operation
Redundant circulation, corrosion-resistant heat transfer, intelligent control and factory validation protect high-density computing loads.

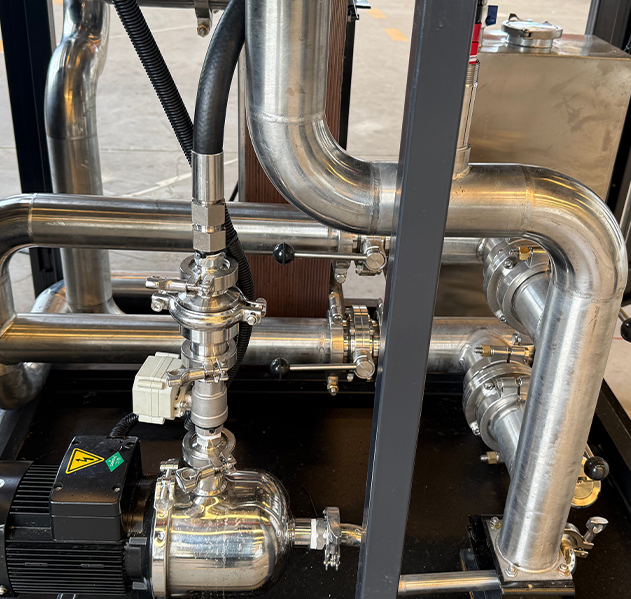

01 - REDUNDANCY
during scheduled maintenance or a pump fault.

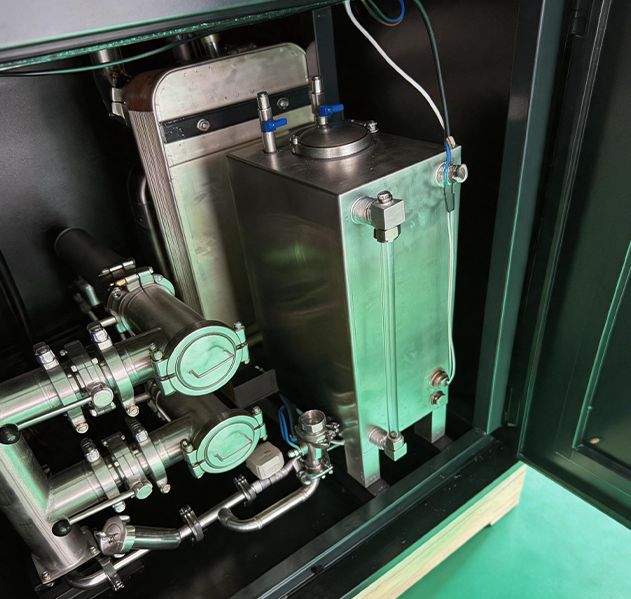

02 - HEAT TRANSFER
facility loop from the protected equipment loop.

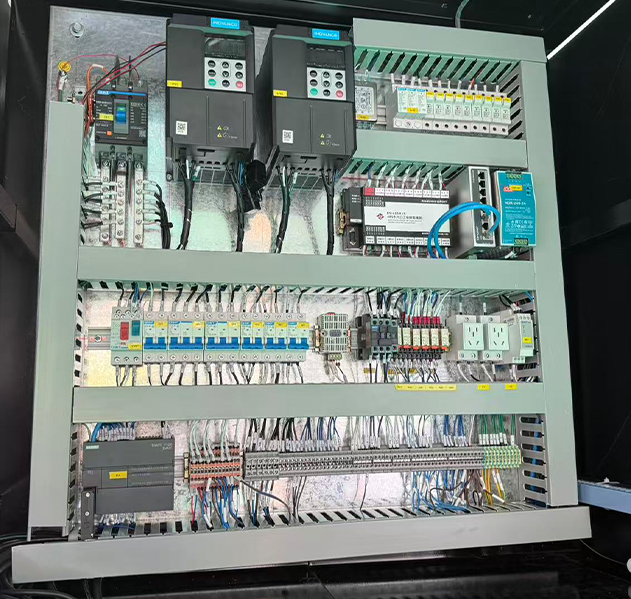

03-CONTROL
temperature, pressure, pump and alarm monitoring.

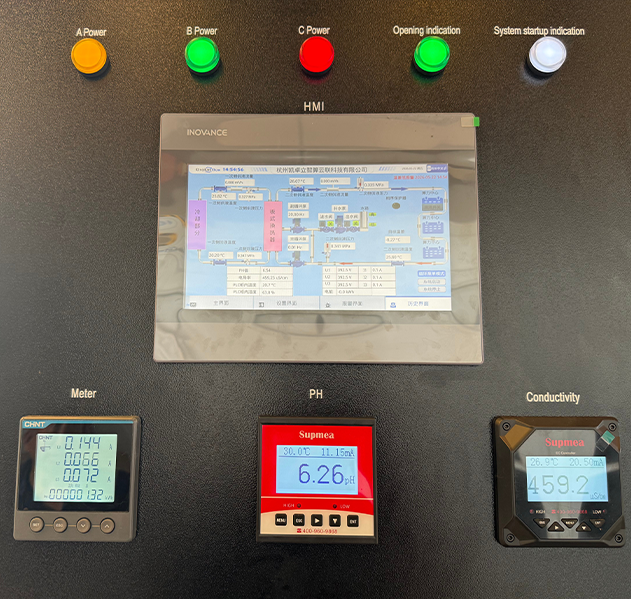

04 - INTEGRATION
supervision, BMS and facility integration.

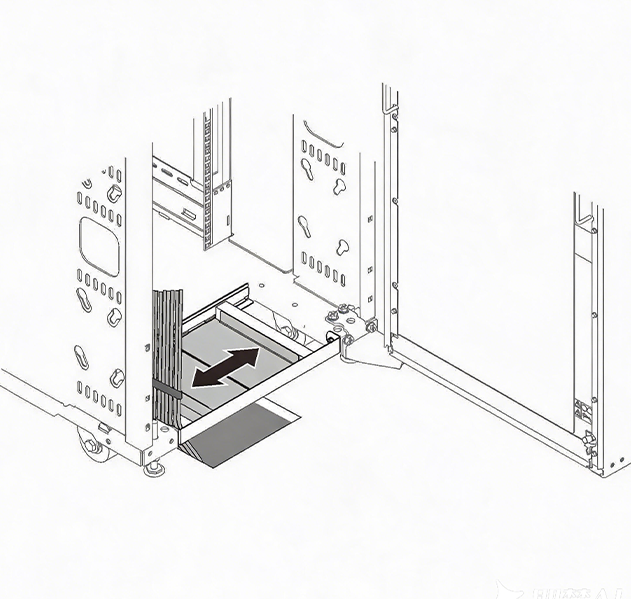

05 - PROTECTION
drainage reduce system-level exposure.

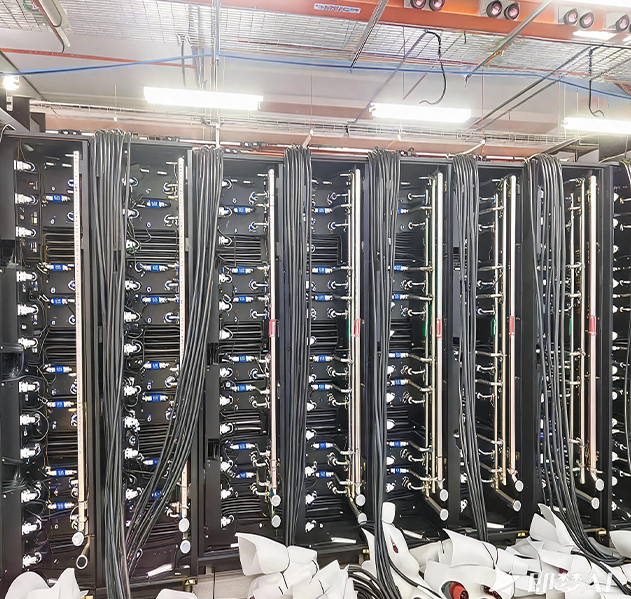

06 - VALIDATION
verified before shipment and site connection.
200–800kW CDU Models and Cooling Capacity
AI/HPC and data center cooling systems.
MODEL 01
Entry configuration for rack rows, container zones and distributed liquid cooling.
Dual-pump architecture
PLC + VFD control
DCIM-ready communication
MODEL 02
Balanced capacity for medium-density data halls and modular mining deployments.
Plate heat exchanger
Variable-flow operation
Project-configurable connections
MODEL 03
Distributed cooling for growing AI, HPC and hydro ASIC infrastructure.
Live pressure monitoring
Leak detection integration
Remote alarm supervision
MODEL 04
High-capacity row cooling for modular data halls and mining container clusters.
N+1 pump redundancy
Modbus communication
Factory acceptance testing
MODEL 05
Large-flow centralized CDU for high-density data halls, AI clusters and liquid-cooled mining farms.
Project-engineered pump package
Centralized control architecture
Primary and secondary loop isolation
MODEL 06
Maximum current platform capacity for centralized data center and campus cooling projects.
Large-flow hydraulic circuit
Heat rejection system coordination
Complete project documentation
Factory Advantages
From concept to commissioning, we deliver fully integrated, compliant, and future-proof mining
container solutions that maximize your ROI while minimizing risk.
Strong Mobility
The overall structure is easy to expand and transport.
Energy Efficiency
Advanced cooling technologies that significantly reduce PUE.
Rainproof Facility
Louver is provided outside the container to resistrain and snow weathers.
Long Lifespan
It is made of high strength metal and can offer along lifespan.
Plug-and-Play Deployment
The overall structure is easy to expand and transport.
Good Compatibility
Double-layer Water Curtains; Cold-Hot Isolated Air Duct Design.
good filtration system
Louver is provided outside the container to resistrain and snow weathers.
Rapid Deployment
10-14 days from order to on-site delivery.
computing environments
colocation facilities and high-density AI/HPC infrastructure.
Bitcoin Mining Farms
Stable coolant delivery for hydro ASICs, high-density mining containers and modular farm expansion.
Data Centers
Distributed or centralized CDU systems for data halls, rack rows and facility cooling loops.
HPC & AI Infrastructure
Precision flow and temperature control for high-power GPU, cold-plate and rack manifold systems.
Enterprise Colocation
Facility-loop integration with Modbus, DCIM and building-management communication.
Renewable Energy Sites
Modular cooling infrastructure for remote, energy-variable and phased compute projects.
Industrial Facilities
Serviceable industrial construction for warehouses, factories and modular compute rooms.
Coolant Distribution Unit
Technical Specifications
Each CDU is configured around actual heat load, flow rate, pressure drop, coolant, climate and site integration requirements.
| Parameter | Current Platform | Project Confirmation |
| Nominal Capacity | 200 / 250 / 300 / 400 / 500 / 800 kW | Peak heat load, design margin and operating temperatures |
| Hydraulic Architecture | Isolated primary and secondary liquid loops | Flow rate, pump head, pipe length, manifold and pressure drop |
| Pump Redundancy | N+1 dual-pump configuration | Required uptime level, single-pump capacity and switchover logic |
| Heat Exchanger | SS304 plate heat exchanger | Material compatibility, design pressure, approach temperature and pressure loss |
| Controls | PLC + VFD regulation | PLC brand, I/O list, alarms, control sequence and remote access |
| Communication | Modbus / DCIM ready | Modbus TCP or RTU, BMS/DCIM platform and data points |
| Coolant | Water or water/ethylene-glycol mixtures | Climate, freeze protection, viscosity, water quality and compatibility |
| Outlet Control Target | Operating range, sensor locations, load stability and control boundary | |
| Target System PUE | 1.12-1.16 reference range by climate | System boundary, ambient climate, heat rejection equipment and load factor |
| Container Integration | Factory-installed, pre-piped and pre-wired options | Container layout, electrical system, manifolds, transport and site work |
Coolant Distribution Unit Components
1. Pump Chambers
The pump chambers regulate fluid flow through the CDU. Its proprietary three-chamber design pulls fluid through the loop while keeping the flow steady.
2. Heat Exchangers
The CDU’s two series-connected heat exchangers transfer up to 300 kW of heat from the technology cooling system to the facility water system, even in hot, humid conditions.
3. Liquid Ring Pump
Liquid ring pumps use water as a seal that never needs to be replaced. The CDU’s liquid ring pump provides the vacuum used to pull the coolant through the load.
4. Microprocessor Control
The CDU’s intelligent, network-connected core automatically manages coolant temperature, flow, water quality, and more. Cool-Flo Software integrates easily with popular DCIM and BMS systems.
5. Water Quality Control
The CDU automatically monitors and maintains water quality in the technology cooling system, dispensing coolant additives as needed to prevent corrosion and biological growth.
6. Coolant Handling Manifolds
The CDU supports up to four cooling loops with flexible top or bottom connections, compatible with both raised-floor and overhead piping for easy installation in different data centers.
FAQ
Clear answers shorten technical review and help us configure the correct CDU before quotation.
ACTBOXES CDU platforms cover configurable nominal capacities from 200kW to 800kW, including ACT-200R, ACT-250R, ACT-300R, ACT-400R, ACT-500L and ACT-800L.
Yes. Flow rate, pump head, connection size, voltage, coolant ratio, communication and control logic can be engineered around site conditions and equipment requirements.
Yes. Factory-installed, pre-piped and pre-wired options can include manifolds, leak detection and container-level controls. Final integration depends on the container layout and transport requirements.
Water and water/ethylene-glycol mixtures are common project options. The final fluid and concentration depend on climate, freeze protection, material compatibility and equipment requirements.
N+1 dual-pump configurations support automatic switchover and can maintain circulation during some scheduled pump-service tasks. The exact maintenance boundary depends on isolation valves and the final system design.
Yes. PLC controls, alarm monitoring and Modbus communication can connect the CDU to DCIM, BMS or project-specific remote supervision platforms.
A complete project typically requires 14-22 weeks after technical confirmation. The schedule depends on capacity, customization, FAT scope, documentation, shipping and site-service requirements.
